|Part Number||L||L1||Reading direction||Mass (g)||Background Color||Price
|Add to Cart|
|FSS-100-R-BK||108||100||Zero point on the left||0.5||BK||3.13||CAD||Cart|
Nabeya Bi-tech Kaisha
Please enter questions about customization and other product-related inquiries here.Find the inquiry form here
Aluminum Evaporation Coating
- Sticker type horizontal scale. Use by sticking to machinery and equipment.
- Standardized 100/200/300/500 mm scale length.
- Made of flexible polyester. Can be stuck to the curved surfaces of posts or shafts, plus can be cut to a desired length for use.
- Corners are rounded. Doesn’t come off easily.

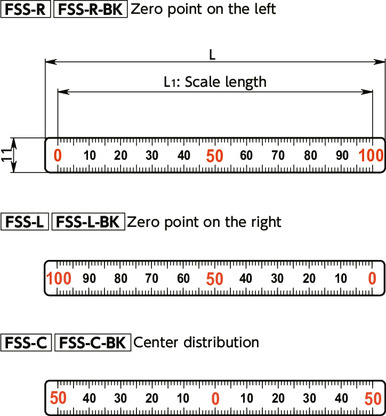

- There are 3 types of scales. They can be selected by the symbol of the part number.
|R||Zero Point on the Left|
|L||Zero Point on the Right|
- There are two color variations available. They can be selected by the end symbol of the part number.
|End Symbol||Background Color||Scale/Numbers|
Precautions for Use
- Use the scale of the FSS Scale Sticker as a general guideline.
- Thoroughly remove oil and dust on the sticking surface before sticking.
Related ProductsPoint Lens FLE, which is useful to read the scale, is available.
