Date Published:Jan. 06. 2015
Procedure of Selection
Select the shape
Select the shape.
Select “radius of gyration”.
Select the kind
Select the kind of screw.
Select “male screw”.
Select the material of screw
Select the materials of screw.
Select screw diameter
Select screw diameter.
Select radius of gyration
Select radius of gyration.
Select the Max. clamping torque
Enter the Max. clamping torque.

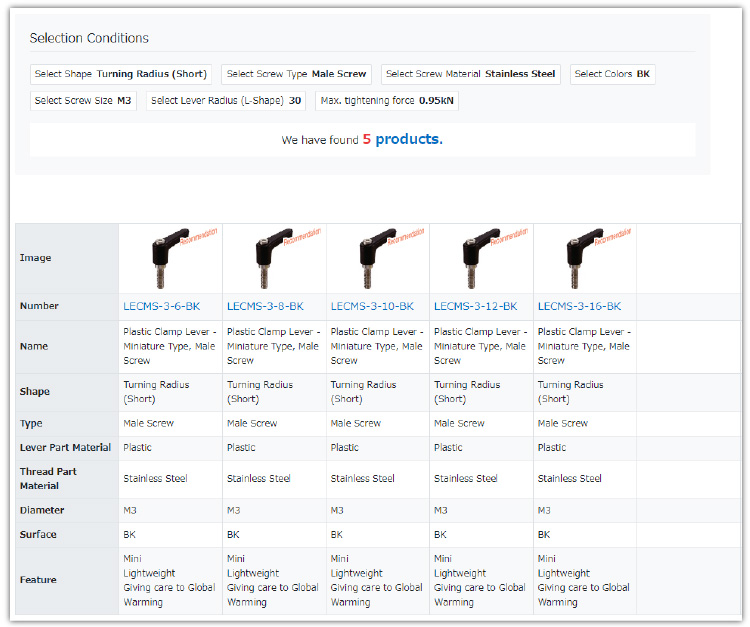

The result of selections is as below.
