• Auto-Positioning Units

EOAT-200

High Torque Adapters

Available Area

Japan, the US, Canada, Mexico, China, Taiwan, South Korea, and Europe

Characteristics

  • Useful in locations requiring high torque, as it reduces the rotation speed of EPU-210 (EPU-210) and EPU-220 (EPU-220) to amplify the torque.
  • For mounting to EPU-210 and EPU-220, a collar and hex socket set screws as well as two hex socket head cap screws for mounting to equipment (M4 × 12 mm) are provided.

EOAT-200High Torque Adapters

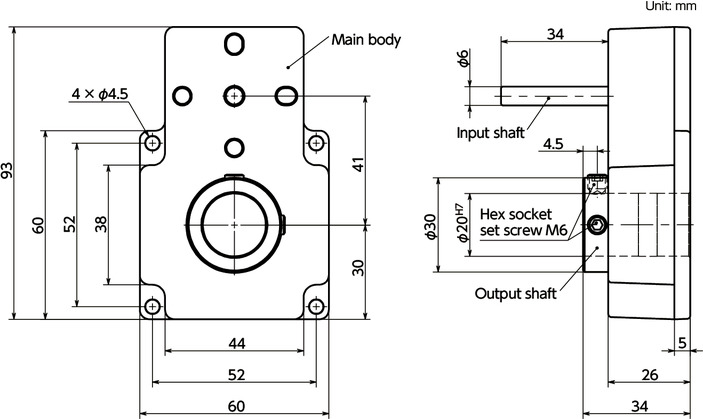

Dimension Drawing

EOAT-200High Torque Adapters寸法図

Specs/CAD

Part Number Mass
(g)
Price
(USD)
Add to Cart
EOAT-200-4 359 190.12 Cart
EOAT-200-8 361 190.12 Cart

Material/Finish

EOAT-200
Main Body ADC12
Acrylic Coating (Matte Black)
Input Shaft SUS304
Output Shaft SUS304
Hex Socket Set Screw SUSXM7
Collar
(Supplied Items)
SUS304
Hex Socket Head Cap Screw
(Supplied Items)
SUSXM7

Performance

EOAT-200-4 EOAT-200-8
Deceleration Ratio 4 8
Rated Torque 2.7 N・m 5.4 N・m
Output Shaft
Rotational Direction
Same Direction as Input Shaft
Output Shaft
Max. Allowable Load
Radial Load 190 N (10 mm Distance from Mounting Surface)
Thrust Load 155 N
Output Shaft Retention Torque 2.5 N・m*1 5 N・m*1
Backlash 1° or Less
Range of Allowable
Operating Temperature
-5°C to 55°C (no freezing)

*1: Values when mounted on EPU-210 and EPU-220 are for reference only. They are not guaranteed values.


Precautions for Use

Before use, be sure to read the Instruction Manual for EPU-210 (EPU-210) and EPU-220 (EPU-220).

Related Products

Mounting plates for high torque adapters EOTAP-200 enable mounting of a high torque adapter using the positioning pin hole for the digital position indicator as-is. EOTAP-200

EOAT-200High Torque Adapters

Dedicated collars EOTCL-200 are available to change the high torque adapter bore diameter. EOTCL-200

EOAT-200High Torque Adapters
