Name: SVSS-M8-PC
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

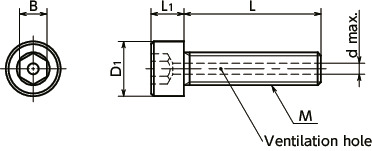

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M8

L: All; 12; 16; 20; 25; 30; 35; 40; 45; 50; 60

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	B	d max.	Qty per Pack	Mass (g)^＊1	Price (USD)	CAD Download	QTY (Pack)
SVSS-M8-12-PC	M8	1.25	12	13	8	6	2	10	11	70.10	CAD	Cart
SVSS-M8-16-PC	M8	1.25	16	13	8	6	2	10	12	72.68	CAD	Cart
SVSS-M8-20-PC	M8	1.25	20	13	8	6	2	10	13	82.43	CAD	Cart
SVSS-M8-25-PC	M8	1.25	25	13	8	6	2	10	15	87.56	CAD	Cart
SVSS-M8-30-PC	M8	1.25	30	13	8	6	2	10	17	92.37	CAD	Cart
SVSS-M8-35-PC	M8	1.25	35	13	8	6	2	10	19	102.57	CAD	Cart
SVSS-M8-40-PC	M8	1.25	40	13	8	6	2	10	21	109.21	CAD	Cart
SVSS-M8-45-PC	M8	1.25	45	13	8	6	2	10	23	122.14	CAD	Cart
SVSS-M8-50-PC	M8	1.25	50	13	8	6	2	10	25	136.75	CAD	Cart
SVSS-M8-60-PC	M8	1.25	60	13	8	6	2	5	29	95.85	CAD	Cart

＊1：　Quantity per pack for SVSS-M4×30-PC and SVSS-M4×35-PC is 10 pieces. Quantity per pack for SVSS-M8×60-PC is 5 pieces.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Related Services

Screw Length Adjustment Service

Material/Finish

	SVSS-PC
Main Body	SUSXM7 （S.S. grade：A2） Chemical Polish
Strength Class	A2-70

Application

Vacuum devices, vacuum chambers, FPD production equipment, semiconductor devices, and electron microscopes

Characteristics

The ventilation hole easily releases gas trapped in the screw holes of equipment and machines, and supports vacuum drawing of vacuum devices.
Cleanroom wash and cleanroom packing are completed.⇒Cleanroom Wash / Cleanroom Packing Service
SVSS-PChas an improved surface coarseness by chemical polishing. Outgas quantity is extremely low. Suitable for the use under medium vacuum environments.
Ventilation holes are made using a method that has little effect on metal structure. The occurrence of outgas under vacuum environment and brittle fracture during usage are suppressed respectively.

Usage Example

Gas trapped at the bottom of a screw hole is released through SVSS, and gas trapped in a drilled hole is released through SWAS-VF（SWAS-VF SWAS-VF-PC）.

SVSS-PCHex Socket Head Cap Screws with Ventilation Hole
