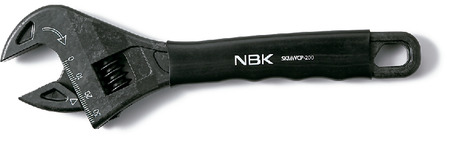

CFRTP Adjustable Wrench

SKMWCP-200

  • Nonmagnetic
  • Light Weight

Dimension Drawing

SKMWCP-200CFRTP Adjustable Wrench寸法図

Unit : mm

Part Number Max. Torque
(N・m)
Mass
(g)
Price
(USD)
CAD
Download
QTY
(Piece)
SKMWCP-200 29.5 81 152.17 CAD Cart

Material/Finish

SKMWCP-200
Main Body CFRTP (Carbon Fiber Reinforced Thermoplastics resin)
Grip Ethylene-propylene Rubber

Application

MRI, electron microscope, linear motor and power plant facilities that generate a strong magnetic field /
Equipment and devices that use permanent magnets / Semiconductor manufacturing equipment / Ships / Offshore instruments

Characteristics

  • Adjustable wrenches are made from resin containing carbon fiber.
  • They are non-magnetic, making it suitable for assembly and maintenance of equipment and devices in environments with strong magnetic fields. They can also be used on electronic devices for which magnetism must be avoided.
  • The screws and nuts are made from scratch-resistant resin.

Precautions for Use

  • Do not use for any applications other than for turning screws.
  • Do not use in locations exposed to live wires, as it contains carbon fiber.
  • Take a firm grasp on the adjustable wrench handle for use.
  • Turn the adjustable wrench in the same direction as the rotation direction arrow displayed on the main body. Refer to Usage for details.
  • It is resin molded, and may get caught on moving parts.

Physical Properties

CFRTP
Specific Gravity 1.54
Magnetic Permeability (µ) 1.000007 (Nonmagnetic)

Values in chart are for reference only. They are not guaranteed values.


Usage

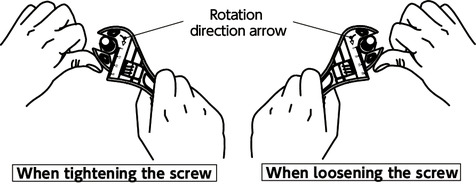

① Ensure that the turning direction of the adjustable wrench is the same as the direction of the arrow indicating rotation direction, and set the wrench to the hex head bolt/nut directly from the side.

SKMWCP-200CFRTP Adjustable Wrench

② Turn the worm gear to move the lower jaw until the width across flat is held tightly with no gap.

SKMWCP-200CFRTP Adjustable Wrench

③ While lightly holding the lower jaw with your fingers, grasp the wrench handle and turn the bolt/nut in the rotation direction.
