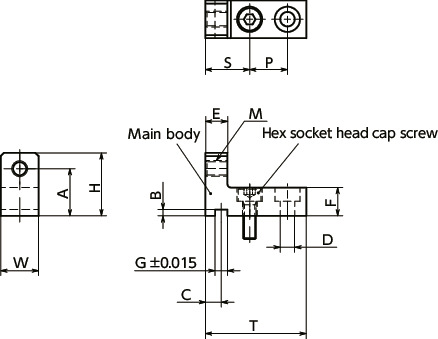

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | W | H | A | B | E | F | G | C | S | P | T | D | M (Coarse) Nominal of Thread |
Pitch | Hex Socket Head Cap Screw | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NLSP-01 | 12 | 20 | 15 | 2 | 7 | 9 | 4 | 5 | 14 | 12 | 32 | 4.5 | M5 | 0.8 | M4×12 | 32.54 | 45.00 | CAD | Cart |
| NLSP-02 | 14 | 23 | 18 | 2 | 8 | 10 | 4 | 5 | 16 | 15 | 38 | 5.5 | M5 | 0.8 | M5×12 | 49.84 | 46.72 | CAD | Cart |
| NLSP-03 | 16 | 27 | 19.5 | 2.5 | 11 | 12 | 5 | 8 | 19 | 17 | 44 | 6.6 | M8 | 1.25 | M6×12 | 79.01 | 49.74 | CAD | Cart |
| NLSP-04 | 22 | 34 | 26 | 2.5 | 13 | 16 | 5 | 8 | 25 | 22 | 57 | 9 | M8 | 1.25 | M8×16 | 187.01 | 59.08 | CAD | Cart |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| NLSP | |
|---|---|
| Main Body | S25C Ferrosoferric Oxide Film (Black) |
| Hex Socket Head Cap Screw | SCM435 Ferrosoferric Oxide Film (Black) |
Characteristics
- Compact type stoppers for linear guides. For space-saving of equipment/devices and applications with limited space.

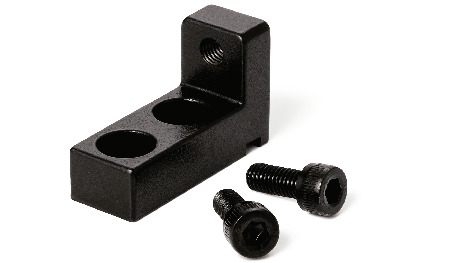

- Hex socket head cap screws for mounting are provided with all products.
Application

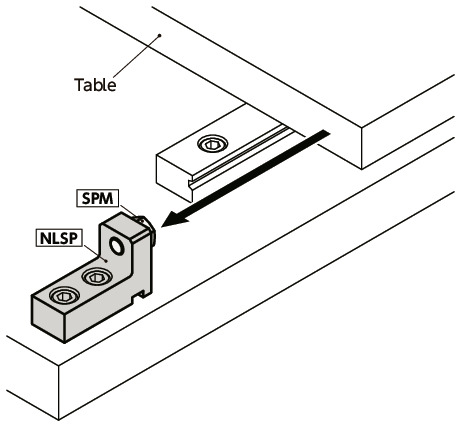

Table retention and fall preventionStoppers for emergencies
Usage Example
